Chicago Brick Oven / 1000 series

1000 DIY Kit

Wood firedDIY kit

More room for your wood-fired menu. Our largest cooking surface, ready for a custom enclosure.

1 review
Configured price
$9,899
$9,099 $9,899

Configure your oven

Oven model

CBO 500 CBO 750 CBO 1000

See what is included with this oven

Planning a delivery date? Ask about current lead times.

Help plan my installation

Compare oven sizes

Compare cooking space.

This oven uses the CBO-1000 hearth. Compare the three sizes below; available formats and fuel options vary by size.

Dimension-based illustrations · Same scale and viewing angle across all three sizes

CBO-500

22½″ W × 26½″ D

A compact place to start.

CBO-500: Cooking space Cooking floor 22.5 inches wide. Depth is 26.5 inches from the inner rear edge to the front edge of the neck. Dimension-based angled illustration with the same scale and depth projection for the hearth and cookware. Reference sizes: 12-inch pizza, 13 by 18-inch pan exterior, and nominal 12-inch skillet with an 18 by 12.56-inch overall footprint including handles and spouts. Front opening at the bottom. Simplified outlines and example layouts, not capacity ratings. FRONT OPENING

17″ wide opening

CBO-750

28″ W × 38¼″ D

More room to gather.

CBO-750: Cooking space Cooking floor 28 inches wide. Depth is 38.25 inches from the inner rear edge to the front edge of the neck. Dimension-based angled illustration with the same scale and depth projection for the hearth and cookware. Reference sizes: 12-inch pizza, 13 by 18-inch pan exterior, and nominal 12-inch skillet with an 18 by 12.56-inch overall footprint including handles and spouts. Front opening at the bottom. Simplified outlines and example layouts, not capacity ratings. FRONT OPENING

17″ wide opening

CBO-1000

39″ W × 53″ D

Room for a bigger menu.

This oven’s size

CBO-1000: Cooking space Cooking floor 39 inches wide. Depth is 53 inches from the inner rear edge to the front edge of the neck. Dimension-based angled illustration with the same scale and depth projection for the hearth and cookware. Reference sizes: 12-inch pizza, 13 by 18-inch pan exterior, and nominal 12-inch skillet with an 18 by 12.56-inch overall footprint including handles and spouts. Front opening at the bottom. Simplified outlines and example layouts, not capacity ratings. FRONT OPENING

21″ wide opening

Reference sizes: 12″ (30.5 cm) pizzas; 13″ × 18″ (33 × 45.7 cm) pans, measured outside the rim; nominal 12″ skillets, 18″ (45.7 cm) including handles and 12.56″ (31.9 cm) across the spouts. Hearth measurements follow the spec-sheet plans; depth includes the front neck. Layouts are examples, not maximum capacity. Allow room for fire and handling; check your cookware’s overall size.

Back to this oven Find my oven View model specifications
CBO 1000 DIY Kit | Wood Fired Outdoor Pizza Oven | Take It To The MAX | 53"" x 39"" Cooking Surface with AccessoryPackages by Chicago Brick Oven

Performance & construction

CBO 1000 DIY Kit Wood Fired Pizza Oven

  • UNPARALLELED PERFORMANCE: CBO Ovens 1) hold heat longer 2) heat faster 3) can cook in excess of 1000°.  All thanks to a proprietary blend of commercial-grade refractory cement.
  • REMARKABLE FLAVORS: Anything cooked on a grill or in a conventional oven can be prepared in a wood-burning oven. The difference? Everything tastes better when it’s wood-fired.
  • ENDLESS MENU POSSIBILITIES: Signature FlameRoll® generates high, even temperatures, allowing you to fire up anything, including grilled meats, roasted vegetables, bubbling cheeses, flaky pizza crusts, and more.
  • MADE IN THE USA: High-performance outdoor pizza ovens sourced and made in the USA to ensure safe and reliable year-round cooking.
  • PROVEN: Time-tested by thousands of Chicago Brick Oven owners from coast to coast.
  • Certifications
    ETL Listed to UL 2162.
    cETL Listed to CAN/ULC-ORD-C2162.
    ETL Sanitation Listed to NSF/ANSI 4.

THE BIGGER, THE BETTER

With over 2,000 square inches of cooking space, the CBO-1000 Commercial Pizza Oven DIY Kit is the ideal high-output commercial oven. It uses three methods to cook efficiently: convection, radiant and conduction.

Build the outdoor oven enclosure of your dreams in brick or stone to fit your individual style. This CBO oven is made of high-grade refractory materials that have alumina, silica and stainless steel fibers throughout the entire mixture. This mixture of materials helps prevent thermal shock, expansion and cracking.

The insulation blanket increases heat retention and the oven's unique shape creates a FlameRoll® which pulls the flame horizontally across the top of the dome and then vertically back down the side, creating higher temperatures for superior cooking. This design allows the oven to reach temperatures in excess of 1,000° F.

After assembling your CBO-1000 DIY Kit, curing the oven before its first use is a critical, yet very simple, step. Here are instructions on how to cure a CBO Outdoor Pizza Oven.

FAN MAIL

"Here's a photo of our Chicago brick oven. We love it! It's the ultimate party facilitation device and the In-Chamber fire goes perfect with our outdoor design theme." - Dave B.

How your oven cooks

Heat from every direction.

The low dome and vent draw flame across the dome and down the side — CBO’s FlameRoll™. Radiant heat, convection and conduction work together throughout the oven.

Convection

Heat that moves.

Air drawn through the opening heats inside the oven, moves toward the back and rises, then flows toward the flue. This continuous circulation carries heat through the cooking chamber.

Radiant heat

Fire and stored heat.

The fire and heat stored in the dome, walls and hearth radiate energy throughout the chamber. That retained heat keeps working as the oven cools.

Conduction

Heat through contact.

The hot hearth transfers heat directly to food or cookware in contact with it. Preheated cookware can then pass that heat directly to the food.

Heat from every direction.

Illustrations show wood-fired cooking principles. Oven size and fuel equipment vary by model.

Picture the possibilities

Make it part of your space.

A place to cook, gather and stay a little longer. Explore the possibilities of brick-oven cooking.

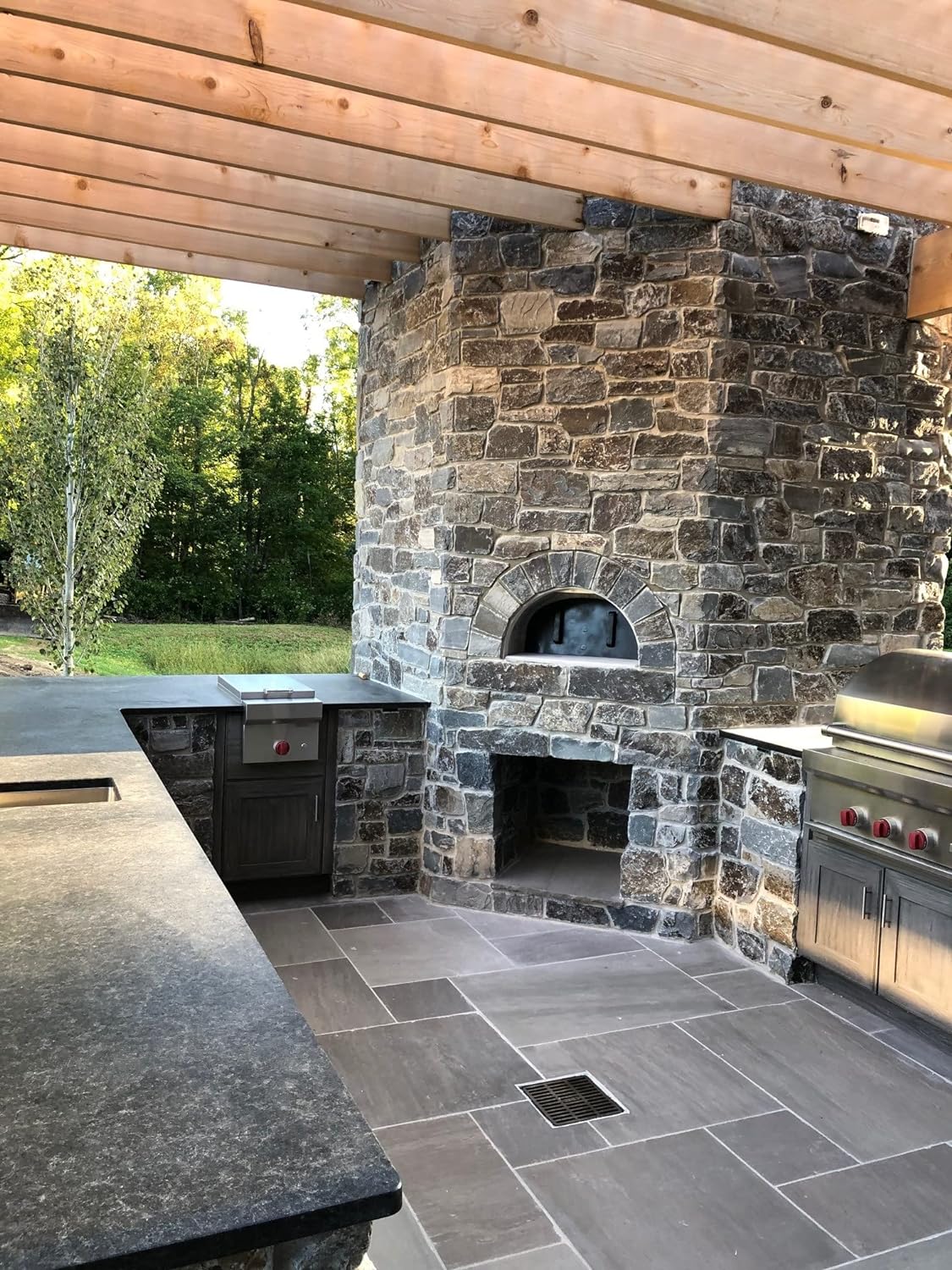

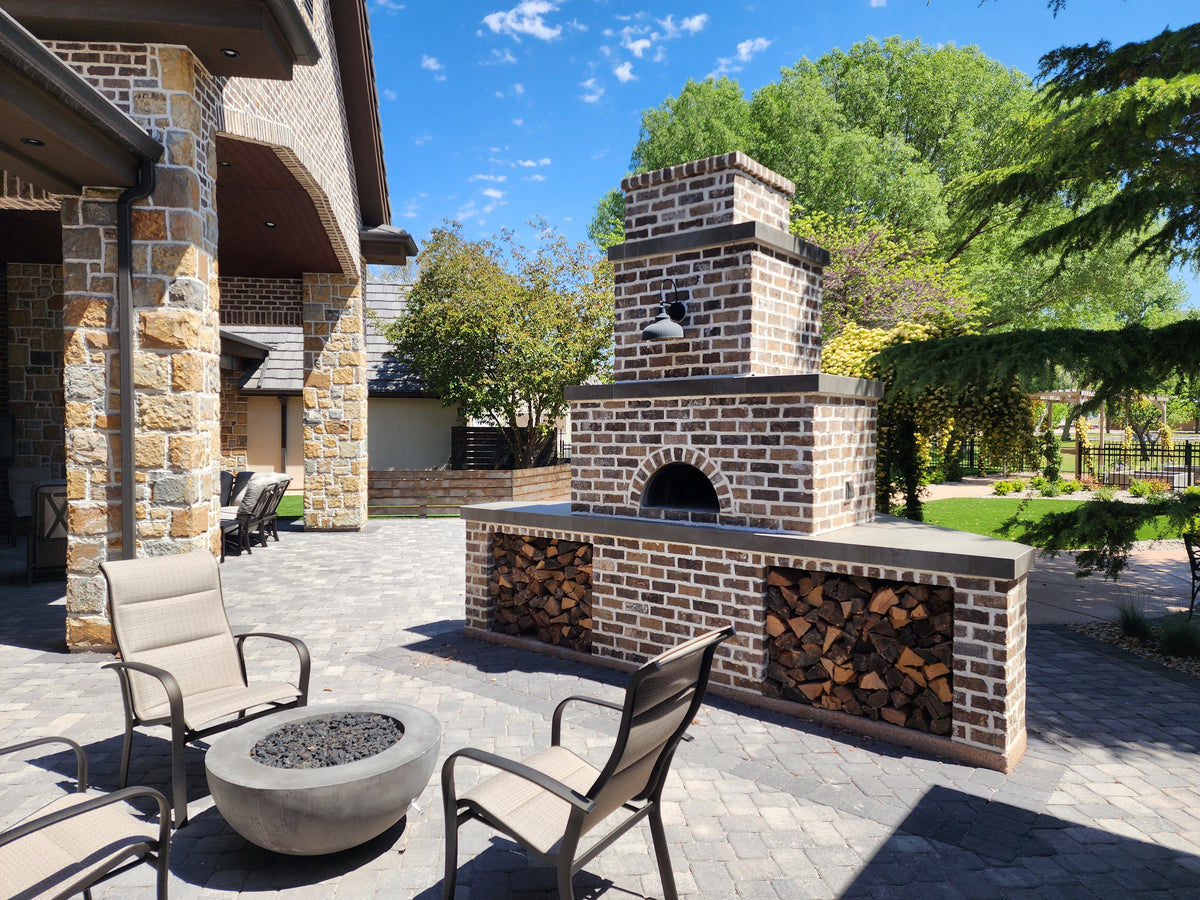

1000 DIY oven in a brick outdoor kitchen on a sunny patio with garden seating
1000 DIY installation. Custom brickwork, counters and patio are project inspiration.
Watch the cooking demo

From the CBO kitchen

Cooking at The Duck Inn

See how a chef brings a menu to life with Chicago Brick Oven.

A CBO cooking demonstration. Installation and equipment shown may differ from your selection.

With your oven

What comes with your oven.

Oven components, installation materials and cooking tools, organized around the package for this model.

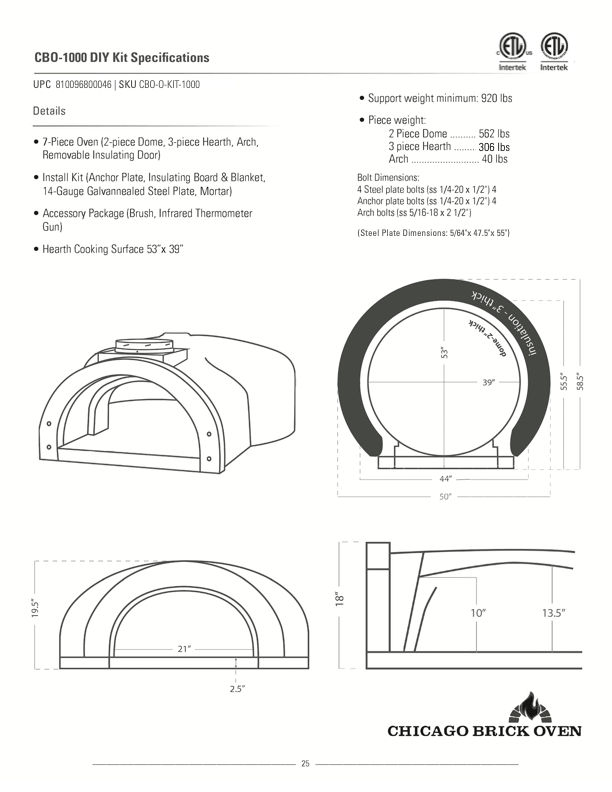

CBO-1000 Pizza Oven DIY Kit includes:

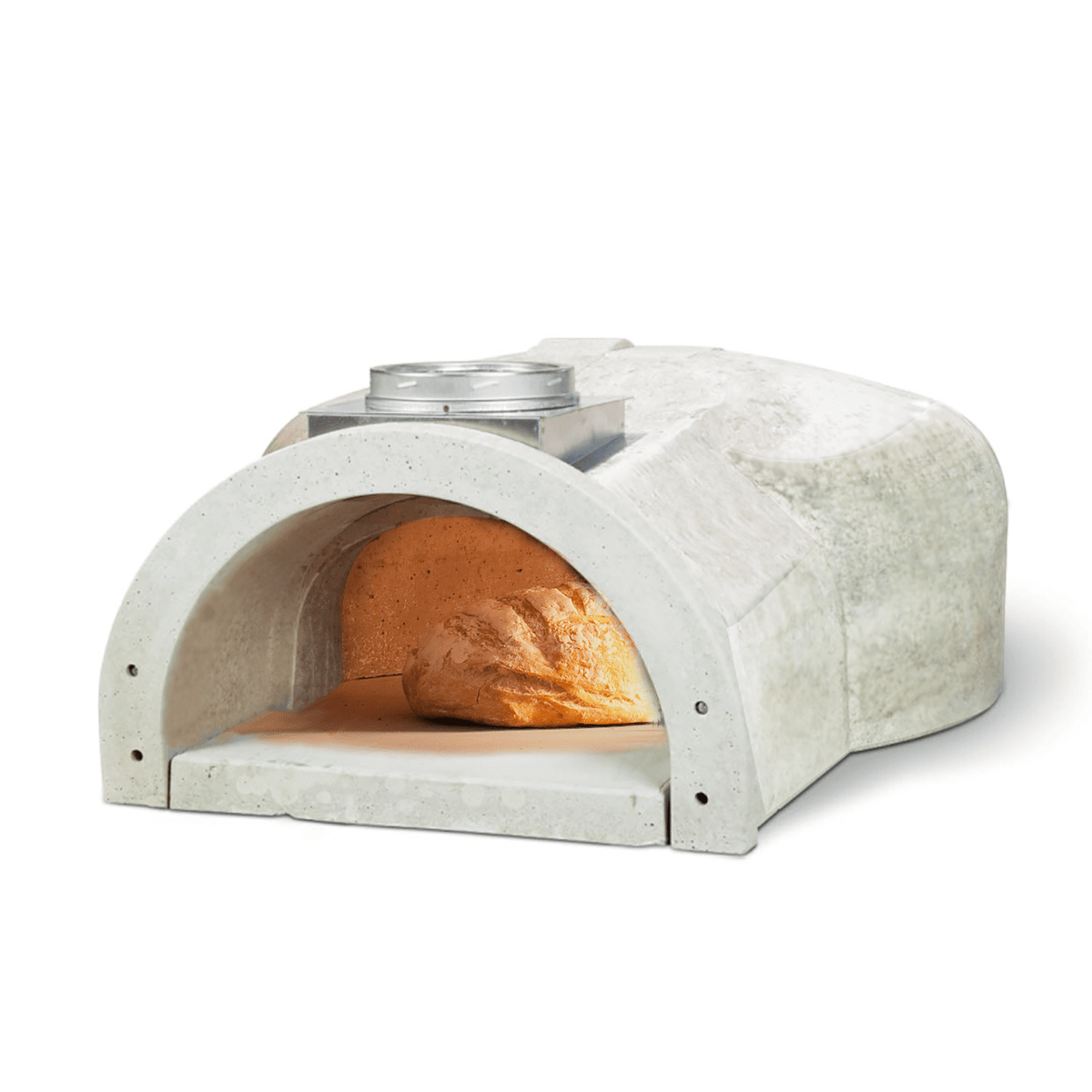

  • 7-Piece Oven - 2-piece Dome, 3-piece Hearth (53" x 39" cooking surface), Arch, Insulating Door
  • Install Kit - Anchor Plate, Insulating Board & Blanket, Steel Plate, Mortar
  • Accessory Package - Brush, Infrared Thermometer Gun, Pizza Peel
  • Over 2,000 sq. in. cooking surface for large gatherings.
  • Proprietary Refractory Blend heats faster, holds heat longer, and reaches over 1000°F.
  • American-made quality, ideal for residential & commercial use.

Plan separately

The supporting structure, enclosure finishes and installation labor. Plan any utility connections and additional venting components with your installer.

Before the first fire

Plan your installation.

Start with the dimensions and the manual for your selected oven. Review the complete installation requirements with your qualified installer before building the supporting structure.

Plan for your model and installation

Use the current wood-fired oven manual to plan the supporting structure, ventilation and clearances for your installation. Review the model-specific drawings with your qualified installer.

Prepare for wood-fired cooking

This model is wood-fired. Follow the manual’s curing, fuel and firing instructions before your first cook.

Help plan my installation
Cooking surface
53" × 39"
Height and clearances
See the installation drawings

Cooking surface is specific to the oven model. Consult the current manual for overall dimensions, support requirements and clearances.

PDFWood-fired oven manualOpen the current manual PDFProduct specification sheetOpen the specification sheet

A few finishing touches

Complete your cooking setup.

Review the package contents above, then choose any additional tools and accessories for your setup.

12 - Inch Heavy - Duty Pizza Cutter Rocker Blade – Stainless Steel Mezzaluna Knife with Titanium Coating – Professional Pizza Cutter w/ Protective Cover with Accessories by Chicago Brick Oven

Sold separately

12″ pizza rocker cutter

$40

View accessory
Explore all accessories

Owner experience

From the people who cook with it.

Explore reviews for this oven, then visit Fan Mail for more stories from the Chicago Brick Oven community.

Read Fan Mail
Customer Reviews
5.0 Based on 1 Reviews
5 ★
100%
1
4 ★
0%
0
3 ★
0%
0
2 ★
0%
0
1 ★
0%
0
Write a Review

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
OS
07/04/2022
Oriella S.

We love out Chicago Brick Oven Pizza!

We love out Chicago Brick Oven Pizza!! We use it all year round and love the fact that it was made in the USA. The flame roll looks magnificent at night and is the center piece of our backyard. We wouldn't have considered any other oven than a CBO!

CBO 1000 DIY Kit | Wood Fired Pizza Oven | Take It To The MAX | 53" x 39" Cooking Surface
Share   |   Facebook  •  Twitter
Was this helpful?  0    0

A few more details

Good questions. Clear answers.

A little planning makes room for years of cooking. Our team can help you work through the details.

Ask our team
What should I review before choosing a location?

Review the current manual for your oven model, including the supporting structure, venting and clearances. A qualified installer can help you confirm the requirements for your planned location before you build.

Read the installation manual
What should I do before the first fire?

Read the current wood-fired oven manual and follow its curing, fuel and firing instructions. Complete the installation checks before starting the oven.

What should I plan around the DIY kit?

The kit provides the oven components listed in the package section. Plan the supporting structure, enclosure, finishes and installation around the dimensions and requirements in the current manual.

See what is included
Which cooking tools are already included?

The Package Includes section shows the cooking tools supplied with your selected oven. Review that list before adding accessories to your order.

See what is included
What is the current lead time?

Contact our team for current availability and lead time for your selected configuration, and to discuss delivery arrangements for your project.

Ask our team
Where should my installer start?

Share the current manual and model-specific drawings with your installer before planning the support, clearances, fuel supply and ventilation. The installation section brings the available resources together.

Plan your installation Read the installation manual
